Straightening
Manually and automatically controlled straightening systems

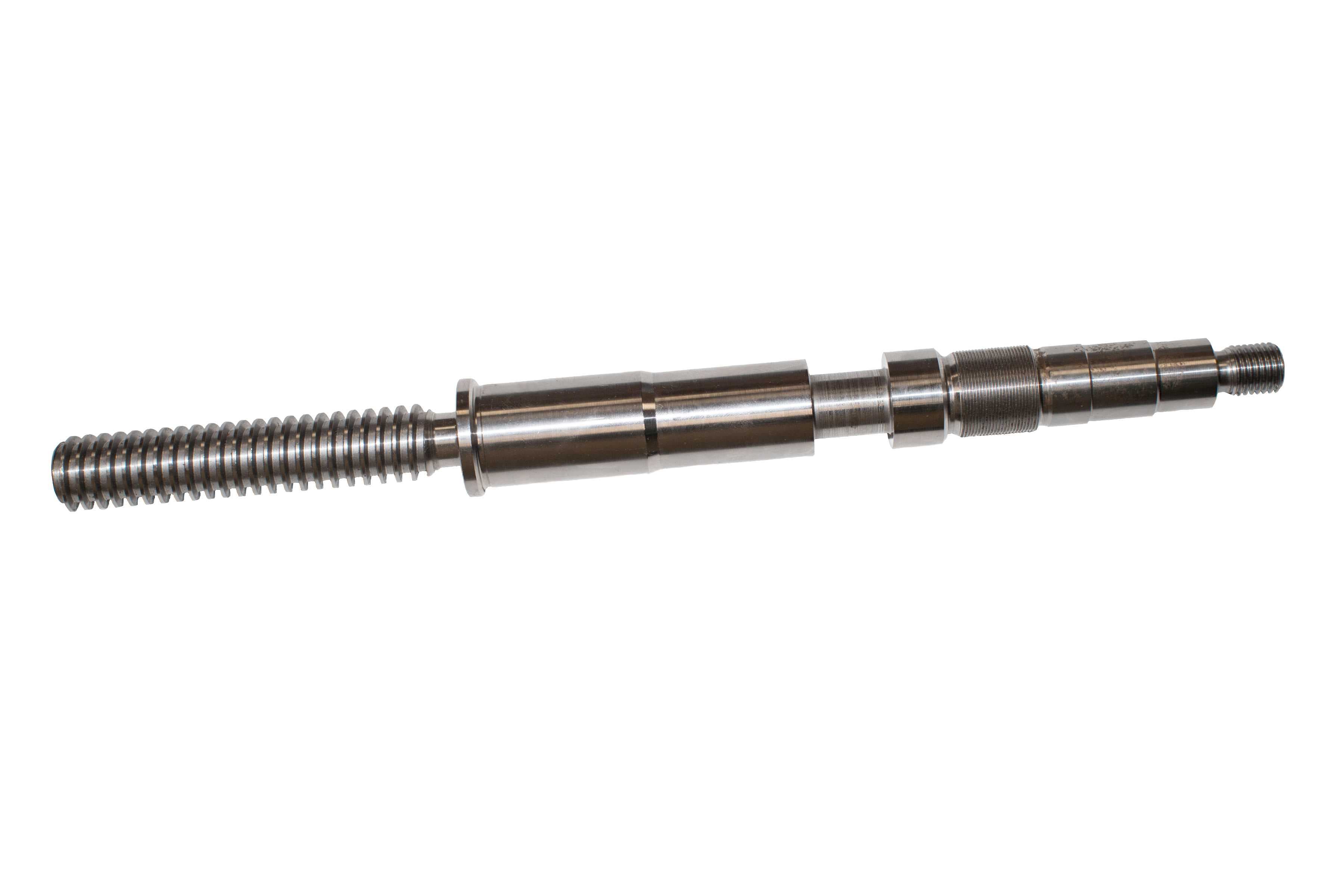

Straightening – for round, profiled and spatially formed components
When it comes to straightening components with high productivity and consistently high quality, there is no way around the automatic straightening machine M-AH from our partner MAE Maschinen- und Apparatebau Götzen GmbH. Flexible automation solutions tailored to individual requirements also enable highly complex short and long turned parts to be produced economically even with fluctuating batch sizes.
Benefits for your production
Various bending technologies
Conventional bend straightening and press straightening for through-hardened parts, torsion straightening for twisted profile bars, rack bars and guide rails.
Precision and efficiency – manual
Round, spatially formed, profiled, cast, soft or with surface hardness: MAE manual straightening presses handle an exceptionally wide range of workpieces. Stroke-controlled straightening is efficient, repeatable and sensitive.

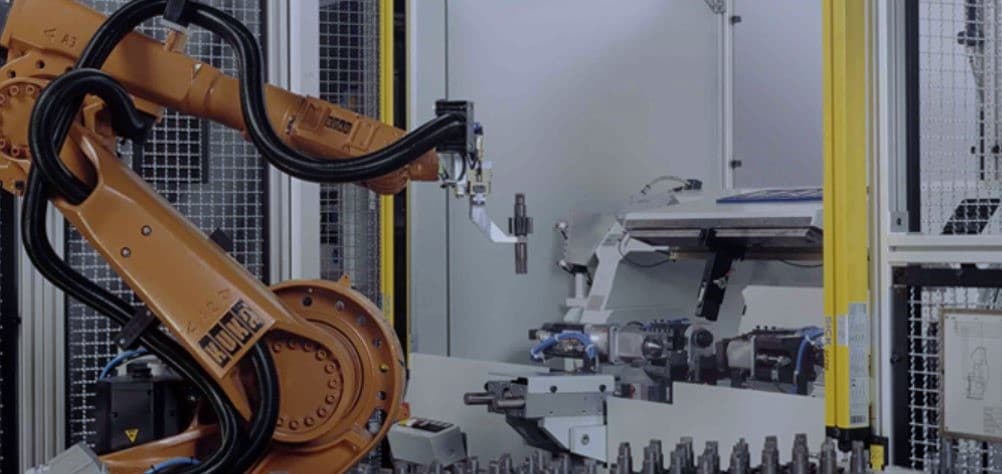

Precision and efficiency – automatic
MAE has developed two solutions: the automatic straightening machines M-AH and ASV. Different linking concepts enable fully automated continuous operation.
Save the key information about IRS Werkzeugmaschinen or submit a contact request directly. We look forward to hearing from you!
Machines
Round, spatially formed, profiled, cast, soft or with surface hardness: MAE manual straightening presses handle an exceptionally wide range of workpieces. Stroke-controlled straightening is efficient, repeatable and sensitive.
- Straightening forces: up to 20,000 kN
- Workpiece lengths: from 30 to 14,000 mm
- Part cross-section: from 3 to 500 mm
- Piece weights: from 5 grams to 20 tonnes
- Measuring and straightening in a single clamping
